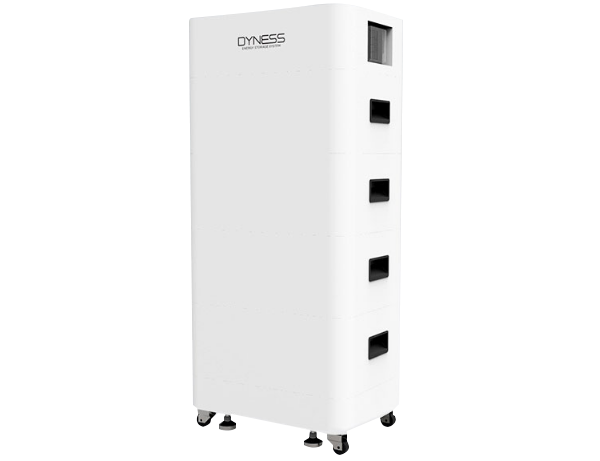

Dyness Floor Battery T Series 10.66kwh
Dyness Floor Battery T Series 10.66kwh
Regular price
€2.600,00 EUR
Regular price
€2.999,00 EUR
Sale price
€2.600,00 EUR
Unit price
/
per
The updated Tower Series is tailor-made for larger residential applications. Stackable design with self-adaptive modules, five energy choices of up to 21.31kWh with parallel connection available, advanced LiFePO4 technologies, over-the-air updates, high water proof level and good heat sink. Whatever you need, DYNESS Tower Series is there to meet more of your requirements.
| Model | Tower T7 | Tower T10 | Tower T14 | Tower T17 | Tower T21 |
|---|---|---|---|---|---|
| Battery Module Type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
| Battery Module Quantity | 2 | 3 | 4 | 5 | 6 |
| Usable Energy | 7.10 kWh | 10.66 kWh | 14.21 kWh | 17.76 kWh | 21.31 kWh |
| Operating Voltage | 168 ~219V | 252 ~ 328V | 336 ~ 438V | 420 ~ 547V | 504 ~ 657V |
| Nominal Voltage | 192V | 288V | 384V | 480V | 576V |
| Nominal Capacity | 37Ah | 37Ah | 37Ah | 37Ah | 37Ah |
| Max. Continuous Charge/Discharge Power [1] | 4.26 kW | 6.39 kW | 8.52 kW | 10.65 kW | 12.78 kW |
| Recommended Depth of Discharge (DOD) | 95% | 95% | 95% | 95% | 95% |
| Dimensions [W*D*H] | 504*380*700 mm | 504*380*900 mm | 504*380*1100 mm | 504*380*1300 mm | 504*380*1500 mm |
| Net Weight [kg] | 105 kg | 146 kg | 187 kg | 228 kg | 269 kg |
| Charging Temperature Range | 0~50℃ | ||||
| Discharging Temperature Range | -10~50℃ | ||||
| Communication | CAN/RS485/RS232 | ||||
| Cycle life [2] | ≥6000 Cycles | ||||
| Protection Level | IP54 | ||||
| Color | White | ||||
| Alarms | Overcharge/Overdischarge/Overcurrent/Overtemperature/Short Circuit | ||||
| Pros | Can be used in both off-grid and hybrid setups, compact design, modular expansion | ||||
| Battery Module Name | HV9637 | ||||
| Expansion | Max. 12 towers can be connected in parallel | ||||
| Certification | UN38.3/CE-EMC/IEC62040/IEC62619/IEC62477/IEC60730/IEC63056/UKCA/CEC Accredited/UL1973/VDE2510-50 undergoing | ||||
