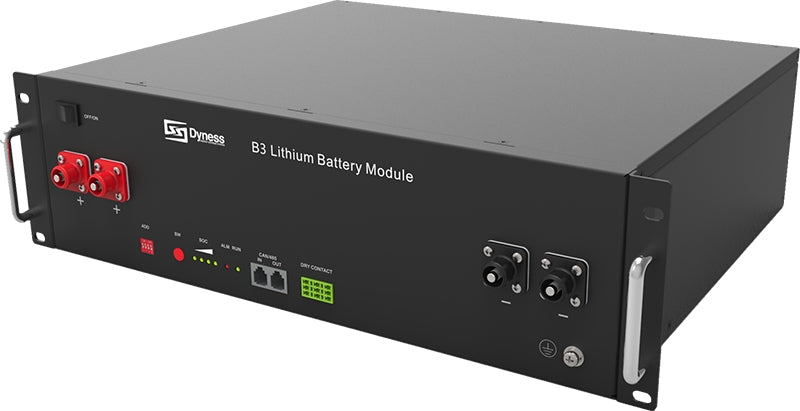

Dyness B3 3.6 kWh
Dyness B3 3.6 kWh
Regular price
€600,00 EUR
Regular price
€720,00 EUR
Sale price
€600,00 EUR
Unit price
/
per
With a 19'' inch modular design and built-in intelligent BMS protection system, DYNESS B3 enables flexible expansion and easy installation & maintenance. It adopts LiFePO4 technology for maximum safety and a longer life cycle.
| Battery Type | LiFePO4 |
| Nominal Battery Energy | 3.6 kWh |
| Nominal Capacity | 75Ah |
| Nominal Voltage | 48V |
| Operating Voltage | 42 ~ 54.75V |
| Recommended C Rate | 0.5C |
| Recommended Charge/Discharge Current | 37.5A |
| Max. Power Charge/Discharge Current | 50A |
| Peak Power Charge/Discharge Current | 55A (protect) |
| Depth of Discharge (DOD) | 90% |
| Net Weight | 31kg |
| Dimension[W*D*H] | 480*360*130 mm |
| Charging Temp. Range | 0~55℃ |
| Discharging Temp. Range | -20~55℃ |
| Communication | CAN/RS485 |
| Cycle Life[1] | ≥6000 Cycles |
| Protection Level | IP20 |
| Expansion | Up to 40 units in parallel |
| Pros | Can be used in both off-grid and hybrid setups, compact design |
| Certification & Safety Standard | UN38.3/CE-EMC/IEC62040/IEC62619/GOST-R/UKCA/CEC Accredited/CEI-021 |
